To make the KVM test framework’s performance more concrete, here are some numbers. In each case, the analysis is using the tools of the time.

TL;DR?

Beg, borrow, or re-purpose that old gaming rig running linux+steam.

Analysis: 2026

Things that have changed since 2020

SSDs are common.

CPUs with lots of real and virtual cores are common.

The queue was reimplemented. There’s now a single queue with each worker working on a test independently. Within that test, operations such as VMs, are all serialized. Since a test’s VM boots are no longer run in parallel, a single test run is slower; however the throughput is roughly the same.

Build VMs are assigned $(KVM_WORKERS) CPUs; and make is invoked with -j ($(KVM_WORKERS).

Test VMs use transient disks (like namespaces, a boot always has a clean disk).

Network interfaces are created directly using low-level IP commands; this is to avoid virsh wanting to constantly play with the firewall.

(Comming soon: replace the thread pool with a process pool.)

Affect of $(KVM_WORKERS) and $(KVM_LOCALDIR)

The full testsuite is run on several pieces of hardware; some looking a little ancient:

• the first m/c is testing.libreswan.org. It’s ancient but still impressive. It’s numbers are also inflated by having to run an additional 237 WIP tests.

• the second m/c was cobbled together using a previous-gen gaming CPU (now it’s at least two generations behind)

• the third and forth m/c really are ancient; and even in their hey-day were low end. It would appear that they are so slow that DH takes so long that the peer times out and/or transmits, leading to false fails.

Note for the following:

• increasing workers has a diminising return

  Which would suggest the bottleneck is else where (mumble something about python threads vs processes).

• what isn’t captured is that the low-end CPUs struggle to produce consistent results (races in tests)

year	H/W	GHz	cores	mem	workers	localdir?	time	false fails	notes
2011	Xeon(R) E3-1240	3.7	4/8	64g	4	/tmp	4:30	17	inflated; includes extra 237 WIP tests testing.libreswan.org
2019	AMD 3950X	4.1	16/32	32g	1	no	11:30	2
2019	AMD 3950X	4.1	16/32	32g	2	no	6:54	2
2019	AMD 3950X	4.1	16/32	32g	4	no	2:30	0	typical
2019	AMD 3950X	4.1	16/32	32g	8	no	2:16 2:10	0	hmm
2019	AMD 3950X	4.1	16/32	32g	16	no	1:15	1	maxed out; note the diminished return
2012	CORE(TM) i5-3317U	1.7	2/4	4g	1	no	18:59	115	laptop
2012	CORE(TM) i5-3317U	1.7	2/4	4g	2	no	10:04	194	can’t have desktop running!
2017	Celeron(R) J4105	1.5	4/4	16g	1	no	21:39	?	mini-pc
2017	Celeron(R) J4105	1.5	4/4	16g	2	no	?	?	mini-pc
2017	Celeron(R) J4105	1.5	4/4	16g	4	no	7:08	298	+ workers==cores
2017	Celeron(R) J4105	1.5	4/4	16g	4	/tmp	7:10	282	+ /tmp

SystemD’s opinion

[linux@east ~]# systemd-analyze time
Startup finished in 452ms (kernel) + 1.941s (initrd) + 2.538s (userspace) = 4.932s
multi-user.target reached after 1.850s in userspace.

[linux@east ~]# systemd-analyze critical-chain
The time when unit became active or started is printed after the "@" character.
The time the unit took to start is printed after the "+" character.

multi-user.target @1.850s
`-systemd-logind.service @1.779s +69ms
  `-basic.target @1.760s
    `-dbus-broker.service @1.793s +35ms
      `-dbus.socket @1.754s +1ms
        `-sysinit.target @1.753s
          `-systemd-update-utmp.service @1.737s +12ms
            `-auditd.service @1.724s +10ms
              `-systemd-tmpfiles-setup.service @1.637s +85ms
                `-local-fs.target @1.634s
                  `-boot.mount @1.618s +16ms
                    `-dev-vda2.device

[linux@east ~]# systemd-analyze blame
2.523s dev-vda2.device
2.523s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2duuid-e82d1a7b\x2d854b\x2d47a6\x2d8ba7\x2dc7daf8e933dd.device
2.523s dev-disk-by\x2dpath-virtio\x2dpci\x2d0000:00:07.0\x2dpart2.device
2.523s dev-disk-by\x2dpartuuid-ac590abe\x2db1a8\x2d4702\x2da88a\x2d5e7167d7d6ba.device
2.523s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartnum-2.device
2.523s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart2.device
2.523s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartuuid-ac590abe\x2db1a8\x2d4702\x2da88a\x2d5e7167d7d6ba.device
2.523s sys-devices-pci0000:00-0000:00:07.0-virtio5-block-vda-vda2.device
2.523s dev-disk-by\x2ddiskseq-1\x2dpart2.device
2.522s dev-disk-by\x2duuid-e82d1a7b\x2d854b\x2d47a6\x2d8ba7\x2dc7daf8e933dd.device
2.519s sys-devices-pci0000:00-0000:00:07.0-virtio5-block-vda-vda1.device
2.519s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartnum-1.device
2.519s dev-disk-by\x2dpath-virtio\x2dpci\x2d0000:00:07.0\x2dpart1.device
2.519s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartuuid-3dfdf4fe\x2de8a4\x2d45e8\x2db29d\x2d6eaed467100a.device
2.519s dev-vda1.device
2.519s dev-disk-by\x2dpartuuid-3dfdf4fe\x2de8a4\x2d45e8\x2db29d\x2d6eaed467100a.device
2.519s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart1.device
2.519s dev-disk-by\x2ddiskseq-1\x2dpart1.device
2.519s dev-vda.device
2.519s dev-disk-by\x2dpath-virtio\x2dpci\x2d0000:00:07.0.device
2.519s sys-devices-pci0000:00-0000:00:07.0-virtio5-block-vda.device
2.519s dev-disk-by\x2dpath-pci\x2d0000:00:07.0.device
2.519s dev-disk-by\x2ddiskseq-1.device
2.508s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartuuid-95376c99\x2dc4cb\x2d4fe1\x2daff0\x2dfaeea5efd589.device
2.508s dev-vda3.device
2.508s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2duuid-3311ec28\x2d9359\x2d42e3\x2d8c07\x2da313ddadb12c.device
2.508s dev-disk-by\x2duuid-3311ec28\x2d9359\x2d42e3\x2d8c07\x2da313ddadb12c.device
2.508s dev-disk-by\x2dpartuuid-95376c99\x2dc4cb\x2d4fe1\x2daff0\x2dfaeea5efd589.device
2.508s sys-devices-pci0000:00-0000:00:07.0-virtio5-block-vda-vda3.device
2.508s dev-disk-by\x2dpath-virtio\x2dpci\x2d0000:00:07.0\x2dpart3.device
2.508s dev-disk-by\x2ddiskseq-1\x2dpart3.device
2.508s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart3.device
2.508s dev-disk-by\x2dpath-pci\x2d0000:00:07.0\x2dpart-by\x2dpartnum-3.device
2.497s dev-ttyS3.device
2.497s sys-devices-platform-serial8250-serial8250:0-serial8250:0.3-tty-ttyS3.device
2.461s sys-devices-platform-serial8250-serial8250:0-serial8250:0.2-tty-ttyS2.device
2.461s dev-ttyS2.device
2.447s sys-devices-platform-serial8250-serial8250:0-serial8250:0.1-tty-ttyS1.device
2.447s dev-ttyS1.device
2.393s sys-devices-pnp0-00:00-00:00:0-00:00:0.0-tty-ttyS0.device
2.393s dev-ttyS0.device
2.378s sys-module-configfs.device
1.306s systemd-networkd-wait-online.service
...

Analysis: 2020

Software - what is run by each test

Boot the VMs

Before a test can be run all the VMs are (re)booted. Consequently one obvious way to speed up testing is to reduce the amount of time it takes to boot:

• make the boot faster - it should be around 1s

• boot several machines in parallel - however booting is CPU intensive (see below for analysis)

To determine where a VM is spending its time during boot, use systemd-analyze blame (do several runs, the very first boot does extra configuration so is always be slower):

$ date ; ./testing/utils/kvmsh.py --boot cold l.east 'systemd-analyze time ; systemd-analyze critical-chain ; systemd-analyze blame'
Mon 10 Aug 2020 09:10:06 PM EDT
virsh 0.00: waiting 20 seconds for domain to shutdown
virsh 0.05: domain shutdown after 0.5 seconds
virsh 0.06: starting domain
virsh 11.07: got login prompt; sending 'root' and waiting 5 seconds for password (or shell) prompt
virsh 11.08: got password prompt after 0.1 seconds; sending 'swan' and waiting 5 seconds for shell prompt
virsh 12.00: we're in after 0.3 seconds!

[root@east ~]# systemd-analyze time ; systemd-analyze critical-chain ; systemd-analyze blame
Startup finished in 1.270s (kernel) + 1.837s (initrd) + 4.448s (userspace) = 7.557s
multi-user.target reached after 4.411s in userspace
The time when unit became active or started is printed after the "@" character.
The time the unit took to start is printed after the "+" character.

multi-user.target @4.411s
└─sshd.service @4.356s +52ms
  └─network.target @4.350s
    └─systemd-networkd.service @1.236s +196ms
      └─systemd-udevd.service @1.003s +229ms
        └─systemd-tmpfiles-setup-dev.service @869ms +102ms
          └─kmod-static-nodes.service @644ms +115ms
            └─systemd-journald.socket
              └─system.slice
                └─-.slice
2.909s systemd-networkd-wait-online.service
 445ms systemd-udev-trigger.service
 443ms systemd-vconsole-setup.service
 229ms systemd-udevd.service
 209ms systemd-journald.service
 196ms systemd-networkd.service
 180ms systemd-tmpfiles-setup.service
 178ms systemd-logind.service
 145ms auditd.service
 138ms source.mount
 124ms testing.mount
 115ms kmod-static-nodes.service
 111ms systemd-journal-flush.service
 110ms tmp.mount
 102ms systemd-tmpfiles-setup-dev.service
  99ms systemd-modules-load.service
  84ms systemd-remount-fs.service
  71ms systemd-random-seed.service
  58ms systemd-sysctl.service
  57ms dbus-broker.service
  52ms sshd.service
  50ms systemd-userdbd.service
  33ms systemd-user-sessions.service
  24ms systemd-fsck-root.service
  23ms dracut-shutdown.service
  21ms systemd-update-utmp.service
  13ms systemd-update-utmp-runlevel.service
   6ms sys-kernel-config.mount
[root@east ~]#

Run the Test Scripts

To establish a baseline, enumcheck-01, which pretty much nothing, takes ~2s to run the test scripts once things are booted:

w.runner enumcheck-01 32.08/32.05: start running scripts west:west.sh west:final.sh at 2018-10-24 22:00:44.706355
...
w.runner enumcheck-01 34.03/34.00: stop running scripts west:west.sh west:final.sh after 1.5 seconds

everything else is slower.

To get a list of script times:

$ awk '/: stop running scripts/ { print $3, $(NF-1) }' testing/pluto/*/OUTPUT/debug.log | sort -k2nr | head -5
newoe-05-hold-pass 295.6
newoe-04-pass-pass 226.7
ikev2-01-fallback-ikev1 212.5
newoe-10-expire-inactive-ike 205.6
ikev2-32-nat-rw-rekey 205.4

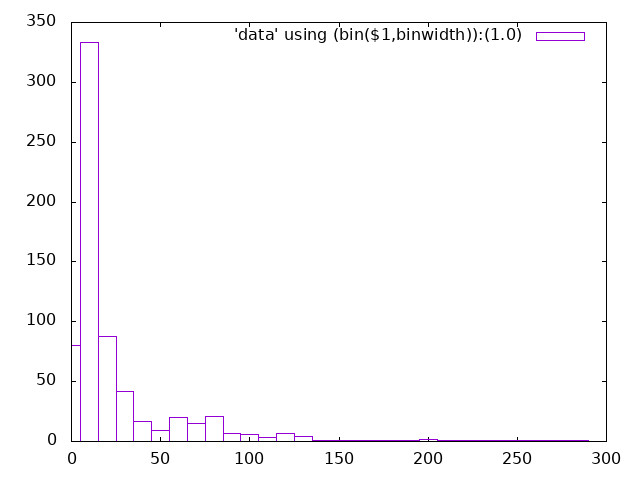

which can then be turned into a histogram:

sleep

ping

timeout

Perform Post-mortem

This seems to be in the noise vis:

m1.runner ipsec-hostkey-ckaid-01 12:44:50.01: start post-mortem ipsec-hostkey-ckaid-01 (test 725 of 739) at 2018-10-25 09:40:49.748041
m1.runner ipsec-hostkey-ckaid-01 12:44:50.03: ****** ipsec-hostkey-ckaid-01 (test 725 of 739) passed ******
m1.runner ipsec-hostkey-ckaid-01 12:44:50.03: stop post-mortem ipsec-hostkey-ckaid-01 (test 725 of 739) after 0.2 seconds

KVM Hardware

What the test runs on

Disk I/O

Something goes here?

Memory

How much is needed?

CPU

Anything Here? Allowing use of HOST’s h/w accelerators?

Docker Hardware

?

Tuning kvm performance

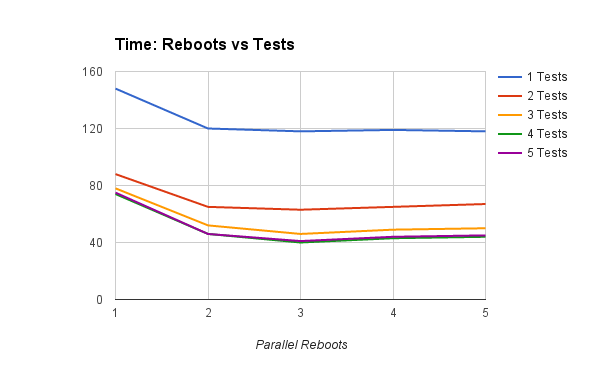

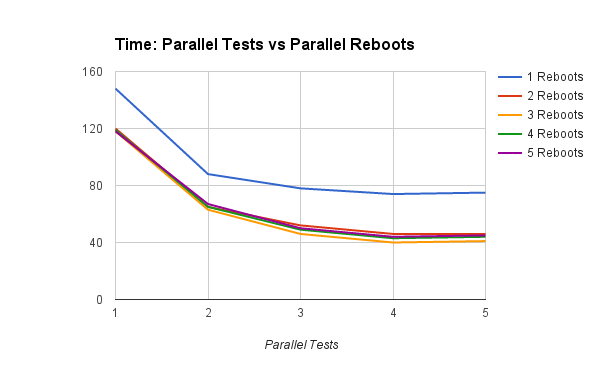

Internally kvmrunner.py has two work queues:

• a pool of reboot threads; each thread reboots one domain at a time
• a pool of test threads; each thread runs one test at a time using domains with a unique prefix

The test threads uses the reboot thread pool as follows:

• get the next test
• submit required domains to reboot pool
• wait for domains to reboot
• run test
• repeat

By adjusting KVM_WORKERS and KVM_PREFIXES it is possible to:

• speed up test runs
• run independent testsuites in parallel

By adjusting KVM_LOCALDIR it is possible to:

• use a faster disk or even tmpfs (on /tmp)

== KVM_WORKERS=… – the number of test domains (machines) booted in parallel ==

Booting the domains is the most CPU intensive part of running a test, and trying to perform too many reboots in parallel will bog down the machine to the point where tests time out and interactive performance becomes hopeless. For this reason a pre-sized pool of reboot threads is used to reboot domains:

• the default is 1 reboot thread limiting things to one domain reboot at a time
• KVM_WORKERS specifies the number of reboot threads, and hence, the reboot parallelism
• increasing this allows more domains to be rebooted in parallel
• however, increasing this consumes more CPU resources

To increase the size of the reboot thread pool set KVM_WORKERS. For instance:

$ grep KVM_WORKERS Makefile.inc.local
KVM_WORKERS=2
$ make kvm-install kvm-test
[...]
runner 0.019: using a pool of 2 worker threads to reboot domains
[...]
runner basic-pluto-01 0.647/0.601: 0 shutdown/reboot jobs ahead of us in the queue
runner basic-pluto-01 0.647/0.601: submitting shutdown jobs for unused domains: road nic north
runner basic-pluto-01 0.653/0.607: submitting boot-and-login jobs for test domains: east west
runner basic-pluto-01 0.654/0.608: submitted 5 jobs; currently 3 jobs pending
[...]
runner basic-pluto-01 28.585/28.539: domains started after 28 seconds

Only if your machine has lots of cores should you consider adjusting this in Makefile.inc.local.

== KVM_PREFIXES=… – create a pool of test domains (machines) ==

Tests spend a lot of their time waiting for timeouts or slow tasks to complete. So that tests can be run in parallel the KVM_PREFIX provides a list of prefixes to add to the host names forming unique domain groups that can each be used to run tests:

• the default is no prefix limiting things to a single global domain pool
• KVM_PREFIXES specifies the domain prefixes to use, and hence, the test parallelism
• increasing this allows more tests to be run in parallel
• however, increasing this consumes more memory and context switch resources

For instance, setting KVM_PREFIXES in Makefile.inc.local to specify a unique set of domains for this directory:

$ grep KVM_PREFIX Makefile.inc.local
KVM_PREFIX=a.
$ make kvm-install
[...]
$ make kvm-test
[...]
runner 0.018: using the serial test processor and domain prefix 'a.'
[...]
a.runner basic-pluto-01 0.574: submitting boot-and-login jobs for test domains: a.west a.east

And setting KVM_PREFIXES in Makefile.inc.local to specify two prefixes and, consequently, run two tests in parallel:

$ grep KVM_PREFIX Makefile.inc.local
KVM_PREFIX=a. b.
$ make kvm-install
[...]
$ make kvm-test
[...]
runner 0.019: using the parallel test processor and domain prefixes ['a.', 'b.']
[...]
b.runner basic-pluto-02 0.632/0.596: submitting boot-and-login jobs for test domains: b.west b.east
[...]
a.runner basic-pluto-01 0.769/0.731: submitting boot-and-login jobs for test domains: a.west a.east

creates and uses two dedicated domain/network groups (a.east …, and b.east …).

Finally, to get rid of all the domains use:

$ make kvm-uninstall

or even:

$ make KVM_PREFIX=b. kvm-uninstall

Two domain groups (e.x., KVM_PREFIX=a. b.) seems to give the best results.

Note that this is still somewhat experimental and has limitations:

• stopping parallel tests requires multiple control-c’s
• since the duplicate domains have the same IP address, things like “ssh east” don’t apply; use “make kvmsh-" or "sudo virsh console \<domain" or "./testing/utils/kvmsh.py ".

== KVM_LOCALDIR=/tmp/pool – the directory containing the test domain (machine) disks ==

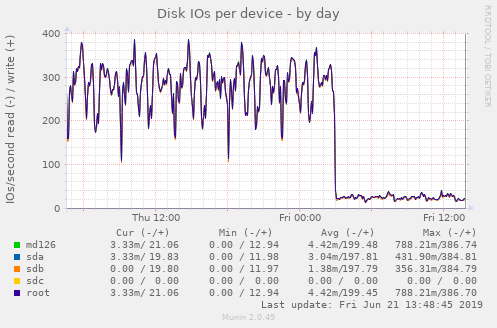

To reduce disk I/O, it is possible to store the test domain disks in ram using tmpfs and /tmp. Here’s a nice graph illustrating what happens when the option is set:

Recommendations

Some Analysis

The test system:

• 4-core 64-bit intel
• plenty of ram
• the file mk/perf.sh

Increasing the number of parallel tests, for a given number of reboot threads:

• having #cores/2 reboot threads has the greatest impact
• having more than #cores reboot threads seems to slow things down

Increasing the number of reboots, for a given number of test threads:

• adding a second test thread has a far greater impact than adding a second reboot thread - contrast top lines
• adding a third and even fourth test thread - i.e., up to #cores - still improves things

Finally here’s some ASCII art showing what happens to the failure rate when the KVM_PREFIX is set so big that the reboot thread pool is kept 100% busy:

                  Fails  Reboots  Time
     ************  127      1     6:35  ****************************************
   **************  135      2     3:33  *********************
  ***************  151      3     3:12  *******************
  ***************  154      4     3:01  ******************

Notice how having more than #cores/2 KVM_WORKERS (here 2) has little benefit and failures edge upwards.

Desktop Development Directory

• reduce build/install time - use only one prefix
• reduce single-test time - boot domains in parallel
• use the non-prefix domains east et.al. so it is easy to access the test domains using tools like ssh

Lets assume 4 cores:

KVM_WORKERS=2
KVM_PREFIX=''

You could also add a second prefix vis:

KVM_PREFIX= '' a.

but that, unfortunately, slows down the the build/install time.

Desktop Baseline Directory

• do not overload the desktop - reduce CPU load by booting sequentially
• reduce total testsuite time - run tests in parallel
• keep separate to development directory above

Lets assume 4 cores

• KVM_WORKERS=1
• KVM_PREFIX= b1. b2.

Dedicated Test Server

• minimize total testsuite time
• maximize CPU use
• assume only testsuite running

Assuming 4 cores:

* KVM_WORKERS=2
* KVM_PREFIX= '' t1. t2. t3.
